3D printed device to hold pcb copper foils for conductivity measurements
using an intrumentational amplifier

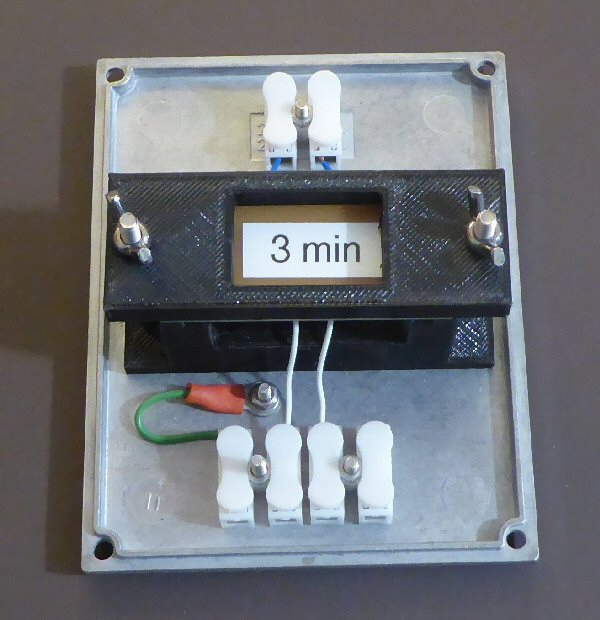

Here is a 3D printed device to hold a 6 x 3 cm pcb onto four spring loaded pins to make reliable and repeatable 4-probe conductvity measurements on the copper foils.
The copper must be cleaned before measurements are made.


OpenScad 3D printed holder for Hall effect measurements


3D printed 4 probe conductivity holder

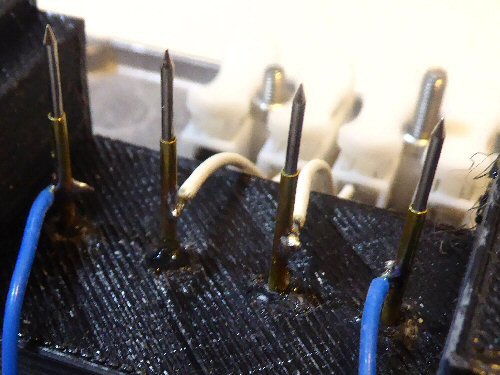

close up of the four spring-loaded clips

3D printed holder for 4 probe conductvity measurements

3D printing files can be found in the links below:
